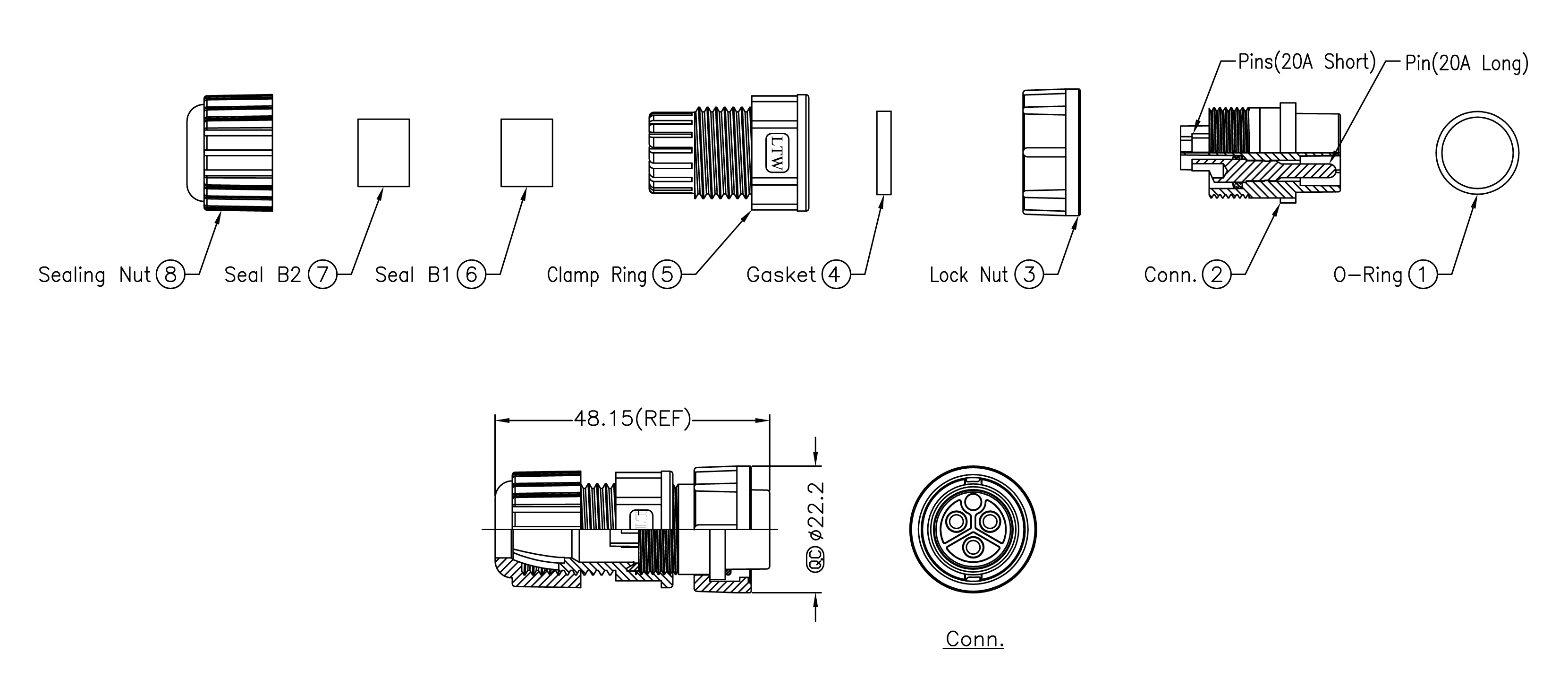

● Waterproof Rate: IP67
● Housing: Nylon+GF, Black
● Male Pin: Copper Alloy, Gold Plated
● O-Ring: Silicon, Gray
● Lock Nut: Nylon+GF, Black
● Gasket: Silicone, Gray
● Clamp Ring: PPO, Black
● Sealing Nut: Nylon+GF, Black
● Seal B1 For Cable OD:7.6mm~9.6mm
● Seal B2 For Cable OD:4.0mm~7.6mm
● One Set Unassembled In One PE Bag.
● Maximum Panel Thickness: 4.5mm
