• Vortex86EX Processor

• Open-Source Hardware
• Support DOS, Windows, Linux
• Arduino-Compatible IDE
• Arduino “Leonardo” form factor

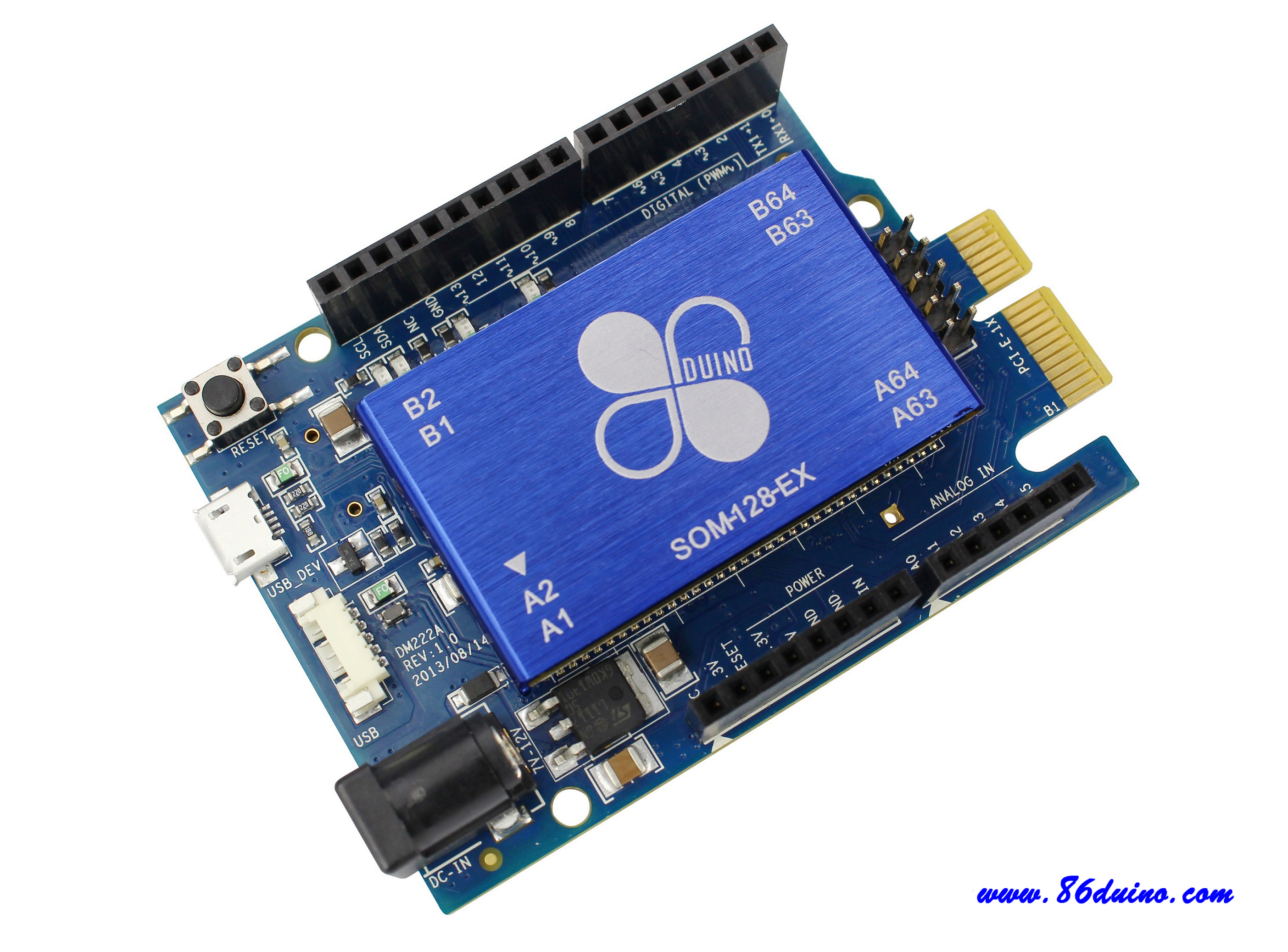

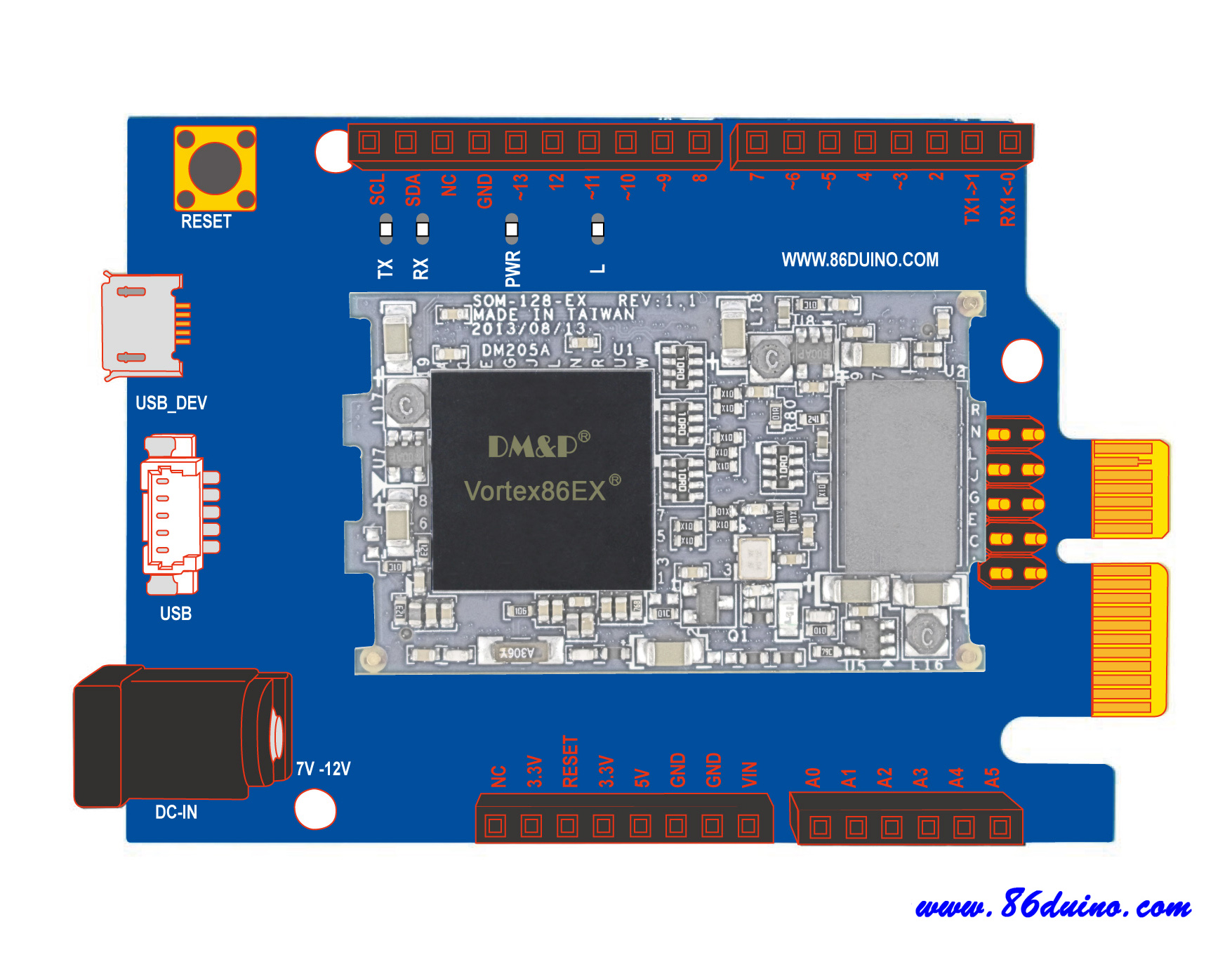

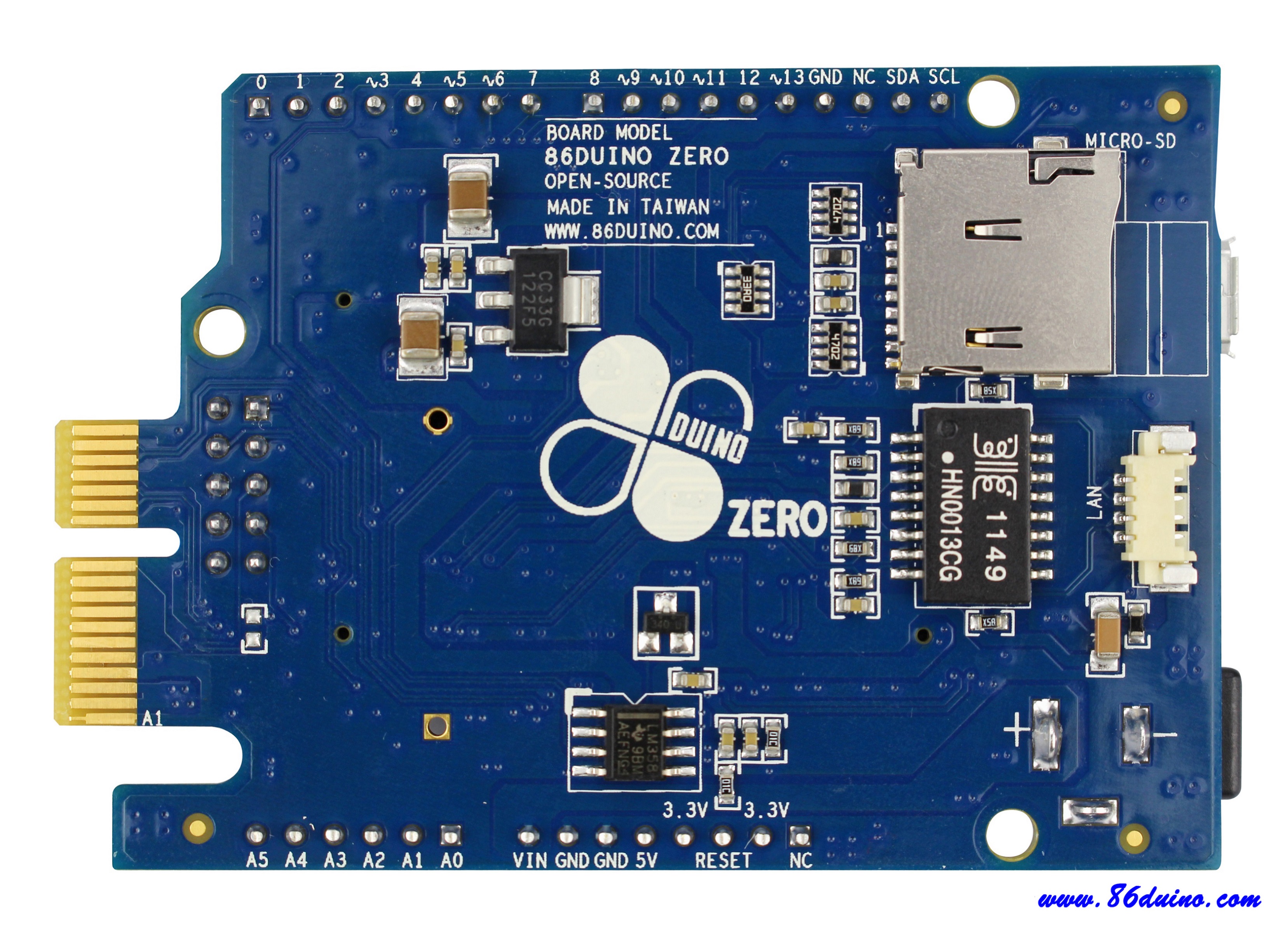

86Duino is an open-source embedded platform based on Vortex86EX SoC, easy-to-use hardware and software integrated. This Arduino-compatible board can support many x86 O/S as well as those running on the original Arduino base system.

The 86Duino is a high performance and fully static 32-bit x86 processor board compatible with Windows OS, Linux and most popular 32-bit RTOS. It integrates PCIE bus, DDR3, ROM controller, xISA, I2C, SPI, IPC (Internal Peripheral Controllers with DMA and interrupt timer/counter included), Fast Ethernet, FIFO UART, USB2.0 and SD/SATA controller within a single package to form a system-on-a-chip (SOC).

86Duino provides an ideal solution for the Arduino and embedded system with desired performance.

• Processor: Vortex86EX
• Clock Speed: 300 MHz
• Memory: 1GB DDR3
• Flash Memory: 8MB
• Digital I/O Pins: 14 (of which 7 provide 32bit PWM output)
• Analog Input Pins: 6 (11bit)
• Operating Voltage: 5V
• Input Voltage (recommended): 7-12V
• DC Current per I/O Pin: 16 mA
• DC Current for 3.3V Pin: 400 mA
